Ster-L-Ray® Ultraviolet Germicidal Lamp

quartz sleeves & tubing
© copyright 2002 Atlantic Ultraviolet Corp

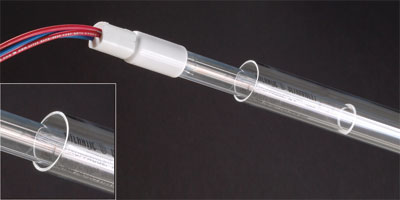

Crystal Clear
Quartz Sleeves
& Tubing
Crystal Clear high quality quartz sleeves are available in a wide range of diameters and wall thicknesses, and in virtually any length. Standard and custom configurations are available. Can be supplied with open ends or with closed (test tube) end. Fire polishing and custom fabrication are available upon request. Standard sizes are listed below. Many other sizes are available.
INSIDE
DIAMETER
OUTSIDE
DIAMETER
WALL
THICKNESS
18.0 mm 20.5 mm 1.25 mm
20.0 mm 22.0 mm 1.00 mm
20.0 mm 23.0 mm 1.50 mm
22.0 mm 24.5 mm 1.25 mm
22.0 mm 25.0 mm 1.50 mm
30.0 mm 33.0 mm 1.50 mm
35.0 mm 38.0 mm 1.50 mm
45.0 mm 48.0 mm 1.50 mm
Crystal Clear TM Quartz Sleeves and Tubing




© copyright 2002 Atlantic Ultraviolet Corp


Ster-L-Ray® is a registered trademark of the Atlantic Ultraviolet Corp.
