Ster-L-Ray® Ultraviolet Germicidal Lamp


Armor
Lite  is a protective coating applied to
Ster-L-Ray
Lamps which prevent the dangers associated with fragments of broken quartz and mercury contamination.

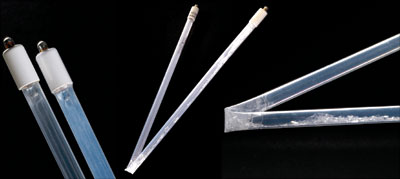

ArmorLite Safety Shield is now available for use with most Ster-L-Ray™ Germicidal Ultraviolet Lamps. The ArmorLite Safety Shield is a protective coating that can be applied to most germicidal lamps (linear lamps up to 64-inches long) purchased from and manufactured by Atlantic Ultraviolet Corporation. The ArmorLite Safety Shield insures protection for employees, products and work environments by preventing the dangers associated with fragments of broken quartz and mercury contamination. The ArmorLite Safety Shield has undergone vigorous, comprehensive testing and evaluation to insure that it is the best product available. Since ArmorLite Safety Shield is applied to standard Ster-L-Ray® Germicidal Ultraviolet Lamps, ArmorLite protected lamps are available for use with any new or existing ultraviolet installation. Contact our ultraviolet Application Specialists to discuss the advantages of using germicidal lamps protected by the ArmorLite Safety Shield in your installation.

APPLICATIONS
ArmorLite Safety Shield is ideally suited for Ster-L-Ray® Germicidal Ultraviolet Lamps used for:
• Air stream and surface disinfection in air duct applications and/or air handling spaces (AeroLogic™).
• Direct surface disinfection of workspaces, products and/or packaging (SaniLIGHT™ & SaniRay™).
• All applications (beverage, food processing, pharmaceutical, semiconductor, etc.) where protection from possible contamination caused by broken ultraviolet lamps is required. (Nutripure™ & Sanitaire™).

FEATURES
• Quartz fragments and mercury are safely contained within the ArmorLite™ Safety Shield.
• Excellent transmission of ultraviolet energy, with minimal loss in output.
• Excellent resistance to nearly all chemicals.
• Insulates ultraviolet lamp from reduced ambient temperatures. Relative ultraviolet output is reduced with lower lamp temperatures.
• Protects against hazards (physical, material handling) associated with broken lamps, quartz fragments and mercury contamination.
• Reduces costs associated with broken lamps: costly downtime during cleanup, possible loss of products due to contamination, etc.


ArmorLite is a trademark of the Atlantic Ultraviolet Corp.
